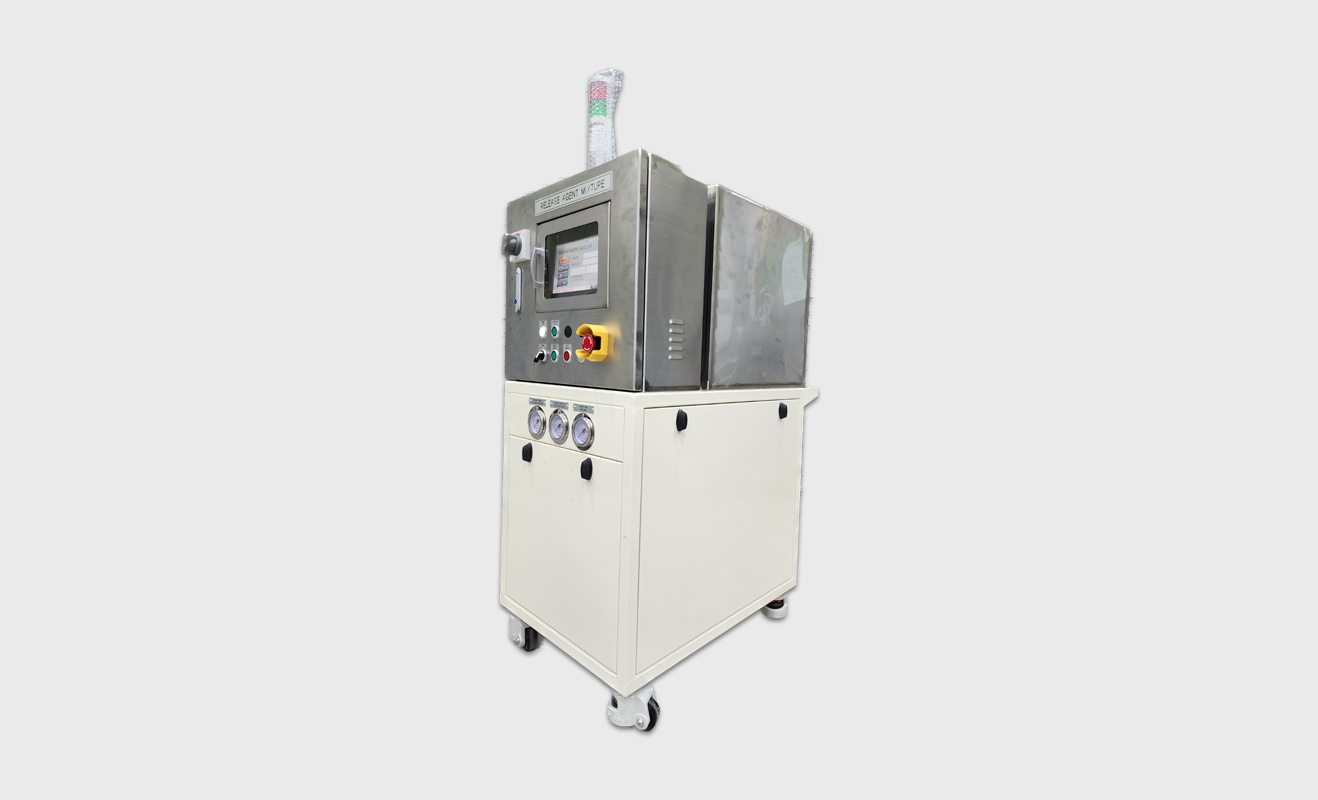

Die casting release agent individual supply

Specification

Specification
MODEL RS120 RS400-D RS1000-D
Power (AC) 1 phase 110V / 220V 1E 60Hz
Size W×D×H (cm) 600×1200×1400 600×1200×1400 600×1200×1400
Tankage (ℓ) 150 400 1000
Diluted capacity (min) 41L 41L 41L
Discharge capacity (min) 120L 120L 190L
Pump capacity 120L 120L×2 190L×2

Features

  • It tells you the amount of undiluted solution used.
  • If there is not enough undiluted solution, the alarm will be raised.
  • The visual effect is excellent by applying the touch panel.
  • It is possible to store and output data such as release agent usage.
  • The temperature of the release agent undiluted solution is shown.
  • The release agent discharge pressure is displayed.
