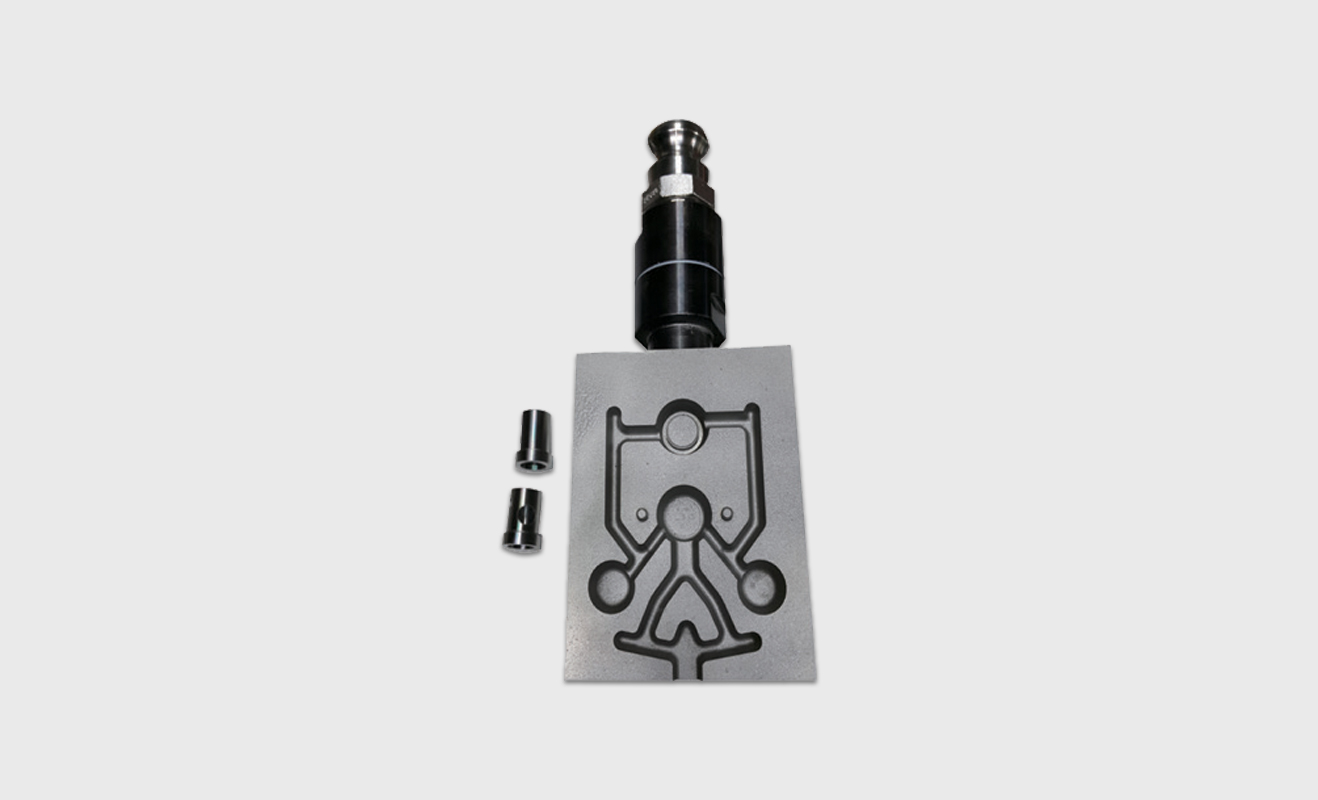

Die casting vacuum block
Features
- Vacuum blocks are manufactured and processed with their own technology, so they have excellent quality and price competitiveness.
- By applying bushing to vacuum shape block holes, the entire shape block was replaced when hole wear was worn, and it can be used again by exchanging only bushing, which leads far in terms of cost reduction.
- The amount of vacuum suction can be freely adjusted by applying bushing.
- Block management is convenient by removing foreign substances with air injection every shot after the work.
- If the vacuum block is blocked, the sensor detects it and immediately raises an alarm.
- It connects the casting machine and the control signal to provide a function of stopping the cycle in the event of a vacuum block abnormality/ checking product defects.

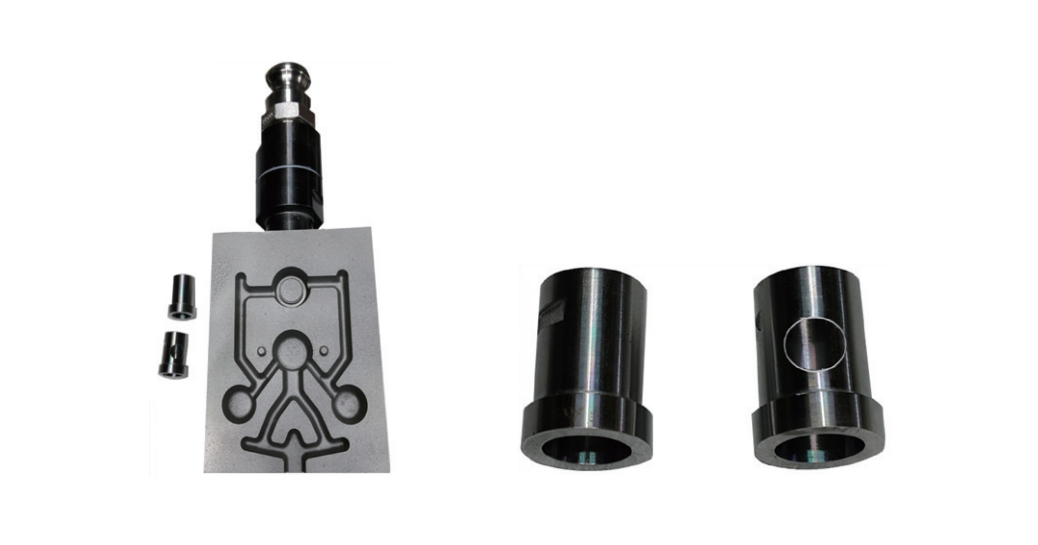

Apply vacuum block bushing

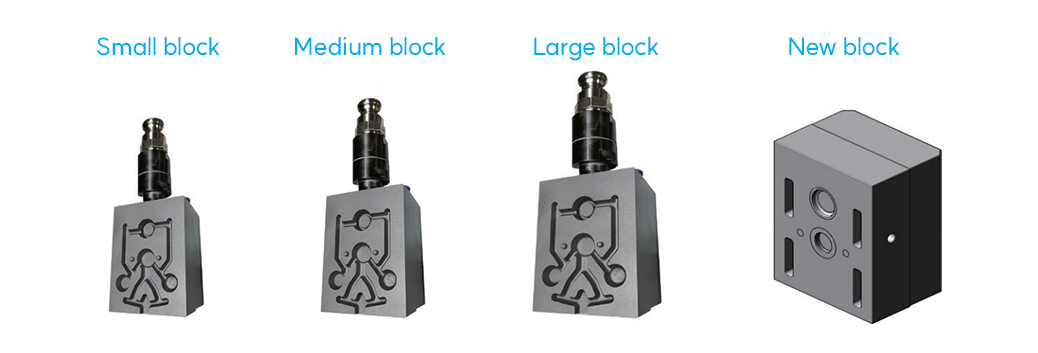

Specification
| MODEL | Small | Midium | Large |
|---|---|---|---|
| Fixed side (mm) | 63×63.4×76 | 100×88.9×127 | 140×108×152 |
| Movable side (mm) | 63×63.4×76 | 100×88.9×127 | 140×108×152 |
| Number of tones used | ~350 | 350~850 | 850~2500 |
