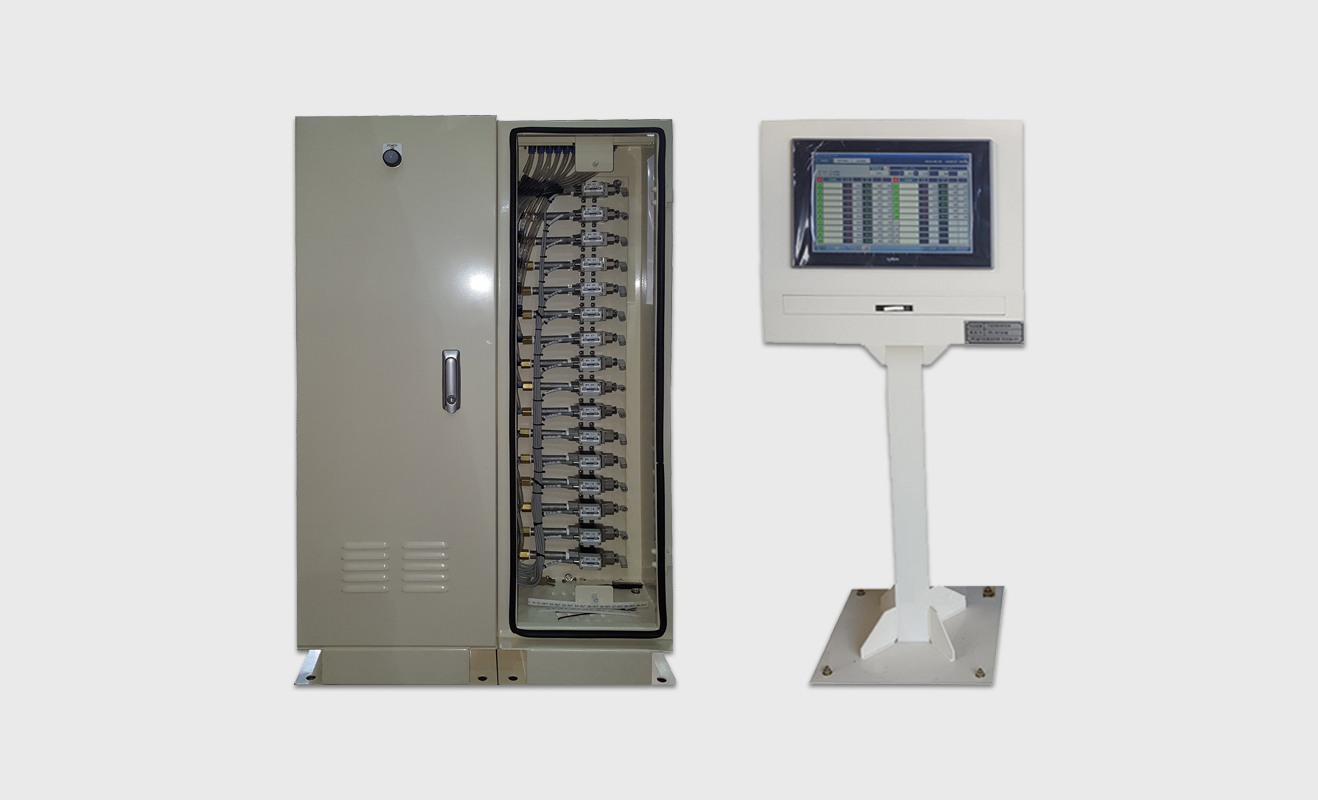

Die casting mold coolant flow monitoring equipment
Mold coolant flow check and flow monitoring equipment
| ITEM | FLOW METER | FLOW SENSOR | FLOW DETECTOR | FLOW LIGHT |
|---|---|---|---|---|
| MODEL | FM10/20 | FS-4, FS-8 | FD-8E, FD-8X, FD-16X, FD-24X | FL-8, FL-16, FL-24 |
| Size W×D×H (mm) | FM10 : 75×60×152 FM20 : 75×60×290 |
FS-4 : 120×60×300 FS-8 : 120×100×300 |
INDICATOR : 480×250×500 STAND : 400×400×900 |
200×80×150 |
| Feature | - Check the flow by rotating the ball - Visual inspection |
- Flow monitoring - Flow : 0.14~5.36 (㎖/min) |
- Instantaneous flow check and alarm - Checking and alerting of integrated flow - Storing flow data - Save Alarm History - Check cooling core pin cutting - Check cooling fin blockage/leakage |
- Water flow confirmation LAMP on - Operation linked to FD |

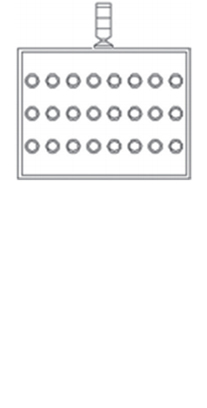

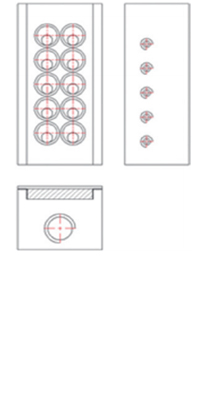

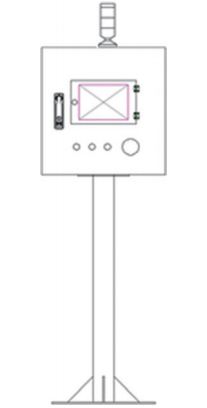

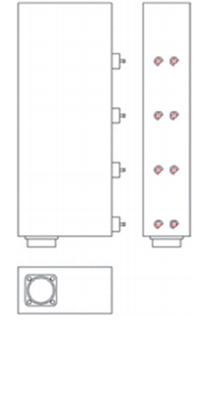

| DWG | FM10 | FS-4 | FD | FL |
 |
 |
 |
 |
