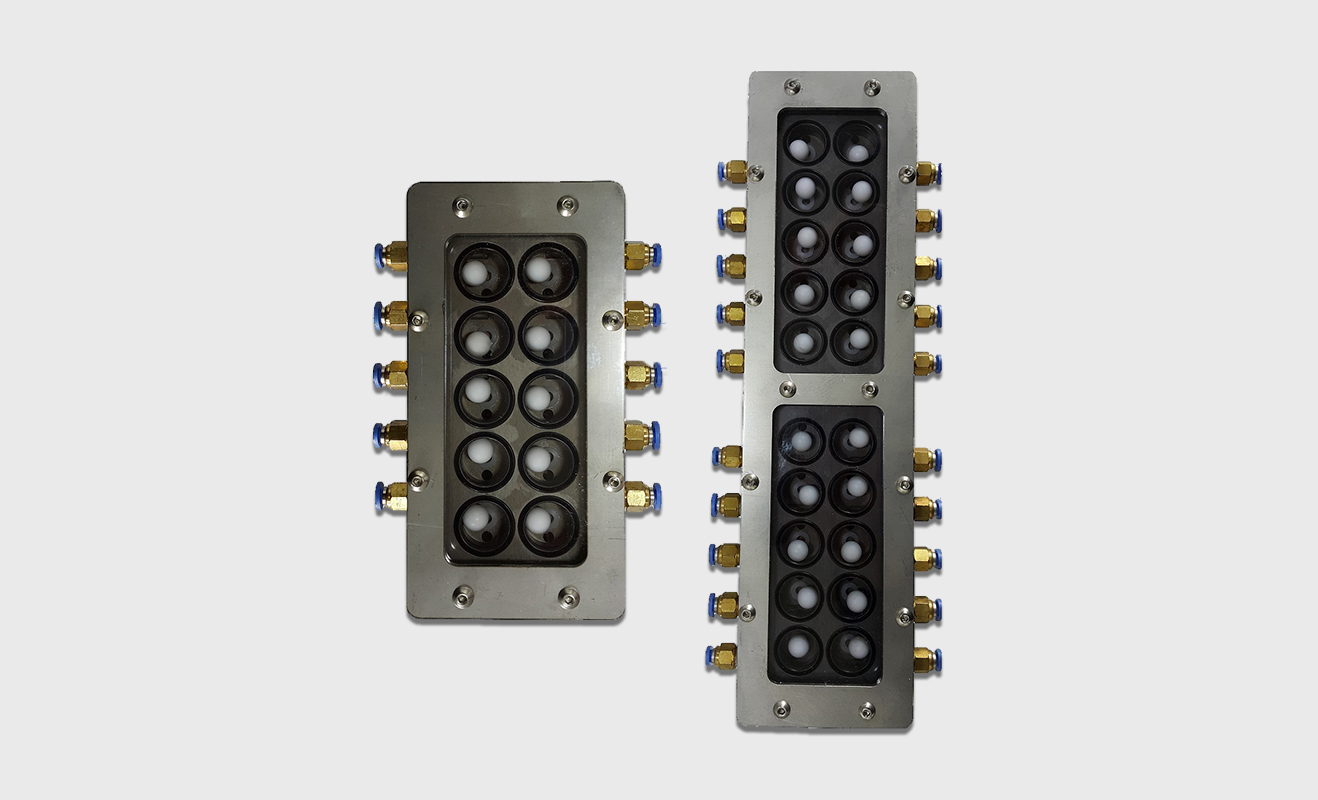

Die casting mold coolant water flow check window

Overview

  • Connect it to the mold coolant out line and visually inspect the coolant pin for blockage.
  • Model: FM-10, FM-20, FMA-10, FMA-20

Specification

Specification
MODEL Size W×D×H (mm) IN OUT
FM10 75×60×152 Rc1/8 Rc3/4
FMA10 80×65×196 Rc1/4 Rc1
FM20 75×60×290 Rc1/8 Rc3/4
FMA20 80×65×335 Rc1/4 Rc1
